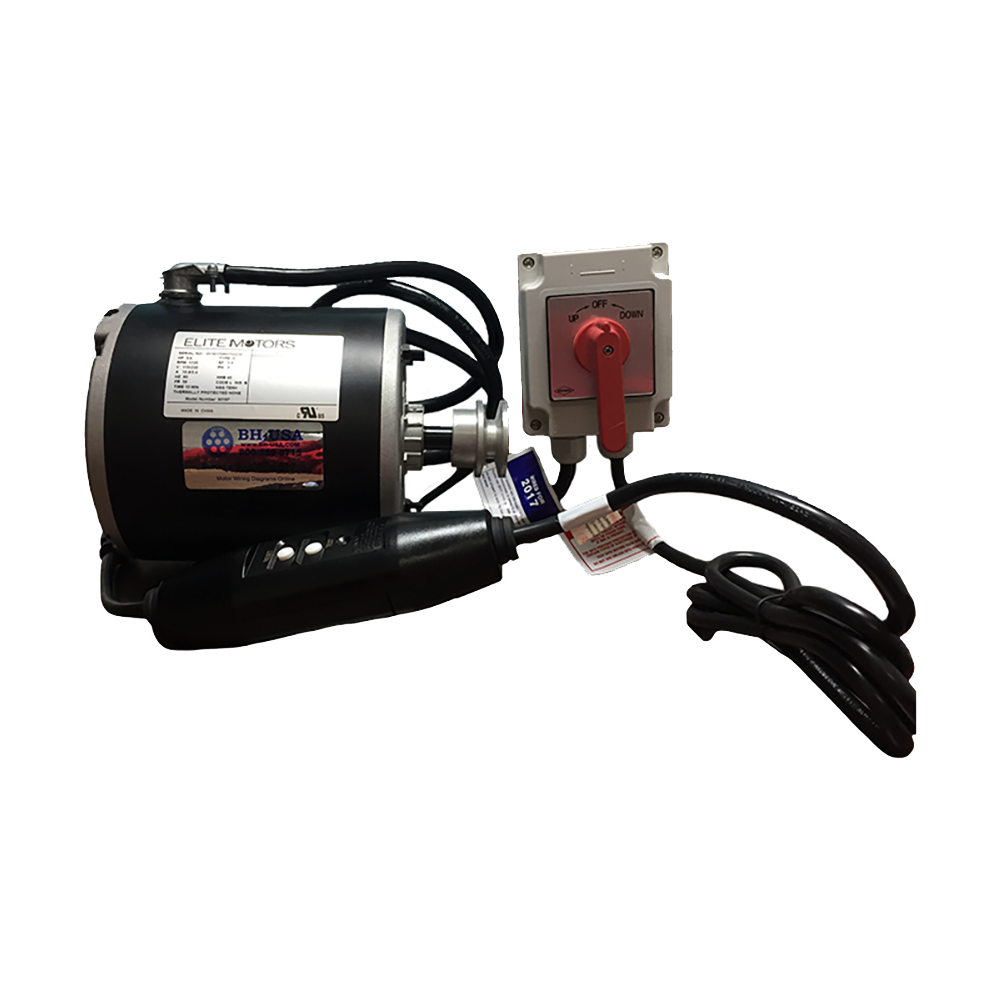

0.75 HP Elite TENV Bremas Wired PWC Motor with Base
0.75 HP Elite TENV Bremas Wired PWC Motor with Base
The 0.75 HP Elite TENV Bremas Wired PWC Motor with Base is an electric motor designed for compatibility with the BH-360 PWC Lift and similar hoists requiring a base-mounted motor. This factory-wired motor comes equipped with a Bremas rotary cam momentary switch, an inline GFCI, and a convenient 6 ft. cord from the GFCI to the plug. The motor also includes a 2 in. drive belt pulley, adding versatility to its functionality.
Constructed as a single-phase, dual-voltage motor, it operates efficiently at 110V, making it suitable for various applications. Crafted from durable rolled steel, the motor features a robust NEMA 56 shaft, measuring 0.625 inches in thickness and extending 1.88 inches from the motor housing. Its UL Recognized (C-UL-US) certification ensures safety and reliability, and it employs a capacitor start for smooth operation.
General Specifications: With a weight of 20.55 lbs., the motor has dimensions of 10.75 in. x 6.75 in. x 8.50 in., and its shaft measures 0.625 in. x 2 in. It is manufactured in China with the model number 93197 and retail SKU 79601.
Nameplate Specifications: The motor has a power rating of 0.75 HP, operates at dual voltages (115v / 230v), and is a single-phase motor. It draws 10.8 (115v) / 5.4 (230v) amps, rotates at 1725 RPM with a frequency of 60 Hz. The NEMA 56 frame has a service factor of 1.0, and it is designed for a 15-minute runtime with a temperature rating of 40°C. The housing is of the TENV type, insulation is class B, and it is thermally protected. The motor is UL Recognized with the cRUus stamp.
Technical Specifications: The motor utilizes a capacitor start, has selective rotation, and features a NEMA 56 shaft with a 1.88 in. extension. The frame is 7.1875 in. long, and it mounts on a resilient base with extended studs. The bearings are ball-type, and it includes a replacement capacitor of 465 uF, along with an included keystock measuring 1 in. x 0.25 in.
Switch General Specifications: The included momentary switch, with model number CA0200034I-B96IQ6R and BH-USA SKU BH09015, has housing dimensions of 4.5 in. x 3.5 in. x 4.5 in. The handle measures 3 in. x 1.1875 in. x 1.3125 in. The box color is light grey, the handle color is red, and it weighs 1.25 lbs. The switch is manufactured in Italy.
Technical Specifications: Operating at 110v, the switch draws 20 amps and is certified according to EN 60947-3, CE, and C-UL-US Listed standards. It provides tight torque.
GFCI Wire Harness Specifications: The 110v GFCI wire harness, manufactured by Southwire Company, includes a 4.5 in. GFCI to plug distance and supports cord diameters ranging from 0.28 in. to 0.65 in. It is UL Listed, CSA Certified, with an automatic reset button. The harness is made in Honduras, with BH-USA SKU 12211 and catalog number 303385214.
Totally Enclosed Non-Ventilated (TENV)
A Totally Enclosed Non-Ventilated motor is a type of electric motor that is enclosed to prevent the ingress of foreign particles (dust, moisture, etc.) but does not have external ventilation openings for air circulation. Unlike some other motor types, TENV motors do not rely on external airflow for cooling and are designed to operate in a sealed environment.
When wiring or rewiring electrical components, BH-USA recommends hiring a licensed electrician.
Specifications
General Specifications
Weight:20.55 lbs.Individual Box Size:15 in. x 10 in. x 10 in.Product Length:10.75 in.Product Width:6.75 in.Product Height:8.50 in.Shaft Width:0.625 in.Shaft Length:2 in.Country of Origin:ChinaModel #:93197Retail SKU:79601
Nameplate Specifications
HP:0.75 (3/4)Voltage:Dual (115v / 230v)Phase:1Amps:10.8 (115v) / 5.4 (230v)RPM:1725Hz:60Frame:56Service Factor:1.0SFA:N/AType:CAMB:40°cTime:15 MINHSG:TENVCode:LInsulation:BThermally Protected:NoneUL:RecognizedUL Stamp:cRUus
Technical Specifications
Electrical Type:Capcitor StartRotation:SelectiveShaft Type:NEMA 56Shaft Extension:1.88 in.Frame Length:7.1875 in.Mounting:Resilient Base – Extended StudsDrive End Bearing:BallOpp Drive End Bearing:BallFrame Material:Rolled SteelReplacement Capacitor:465 uFCapacitor SKU #:BH02247Keystock:IncludedKeystock Length:1 in.Keystock Width:0.25 in.
Switch General Specifications
Momentary
Model #:CA0200034I-B96IQ6RBH-USA SKU #:BH09015Housing Length:4.5 in.Handle Length:3 in.Housing Width:3.5 in.Handle Width:1.1875 in.Housing Height:4.5 in.Handle Height:1.3125 in.Box Color:Light GreyHandle Color:RedCountry of Origin:ItalyWeight:1.25 lbs.
Technical Specifications
110v
Amps:20Certification:EN 60947-3VAC600Certification:CETorque:TightCertification:C-UL-US Listed
GFCI Wire Harness Specifications
110v
Manufacturer:Southwire CompanyGFCI to Plug:4.5 in.Plug Type:3-US 110 V StandardCord Dia. Range:0.28 in. – 0.65 in.VAC:125Country of Origin:HondurasHz:60UL:ListedAmps:15CSA:CertifiedWatts:1875Reset Button:YesType:Rainproof Class AReset Type:AutomaticGFCI Type:In-lineBH-USA SKU:12211Cable Type:14/5 SJTWCatalog #:303385214
Product Overview
Elite TENV PWC Motor: BH-360 Lift Compatible
Single-phase, dual-voltage 110V for versatility
Durable rolled steel construction with UL certification
Capacitor start ensures smooth and reliable operation
General specs: 20.55 lbs., 10.75 x 6.75 x 8.50 in.
NEMA 56 shaft: 0.625 in. thick, 1.88 in. extension
Nameplate details: 0.75 HP, 1725 RPM, 60 Hz
Technical specs: Capacitor start, NEMA 56 shaft
Momentary switch: Italian-made, 20A, EN 60947-3
GFCI wire harness: 110v, UL Listed, CSA Certified
