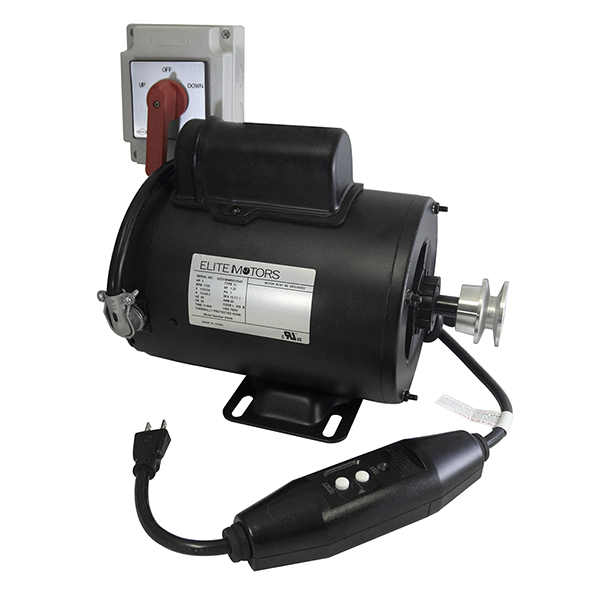

1 HP Heavy Duty Elite TENV Bremas Wired Motor with Base
The 1 HP Heavy Duty Elite TENV Bremas Wired Motor with Base is a single-phase, dual-voltage (115v/230v) boat lift motor. The motor has a painted coating on the housing. The welded base of the motor is compatible with standard mounting patterns found on flat-plate gear plates, which are commonly used in boat hoists to lift and lower boats.
This motor is engineered to seamlessly integrate with a range of flat-plate hoists from reputable brands like Boat Hoist USA, ACE Labs, American Power Hoist, AMS, and Hefty Hoist. It comes with detailed wiring instructions compatible with Breams and Salzer drum switches, ensuring smooth installation and operation. Additionally, it is fully compatible with remote controls from GEM, Galaxy, TEC, and Elite for convenient and efficient boat lift operation. Furthermore, this motor is equivalent to the Leeson boat hoist motor #6439191252, providing comparable performance and reliability.
You can choose between a Bremas maintained (lock-on) or momentary (spring-loaded) boat lift switch. Both switches are connected with 14/5 SJTW control cable, with the in-line GFCI located 4 1/2 inches away from the plug. The type of plug and GFCI wired to the wiring harness depends on your motor voltage selection.
This heavy-duty motor has a power of 1 horsepower (HP) and can operate on either 115 volts or 230 volts. When running on 115 volts, it draws 13.0 amps, and on 230 volts, it draws 6.5 amps. It spins at a speed of 1725 revolutions per minute (RPM) with a frequency of 60 Hz. It fits into frame 56 and has a service factor of 1.25. It can handle up to 15.7 amps at 115 volts or 7.7 amps at 230 volts. It’s built to withstand temperatures up to 40°C for a maximum of 15 minutes. The housing is Totally Enclosed Non-Ventilated (TENV) with a code of L. It has insulation class B and is recognized by UL with a C-UL-US stamp.
Totally Enclosed Non-Ventilated (TENV)
A Totally Enclosed Non-Ventilated motor is a type of electric motor that is enclosed to prevent the ingress of foreign particles (dust, moisture, etc.) but does not have external ventilation openings for air circulation. Unlike some other motor types, TENV motors do not rely on external airflow for cooling and are designed to operate in a sealed environment.
When wiring or rewiring electrical components, BH-USA recommends hiring a licensed electrician.
Specifications
General Specifications
Weight:29.75 lbs.Individual Box Size:15 in. x 10 in. x 10 in.Product Length:12.50 in.Product Width:6.75 in.Product Height:9.50 in.Shaft Width:0.625 in.Shaft Length:2 in.Country of Origin:ChinaModel #:93046Retail SKU:93068
Nameplate Specifications
HP:1 (Heavy Duty)Voltage:Dual (115v / 230v)Phase:1Amps:13.0 (115v) / 6.5 (230v)RPM:1725Hz:60Frame:56Service Factor:1.25SFA:15.7 (115v) / 7.7 (230v)Type:CAMB:40°cTime:15 MINHSG:TENVCode:LInsulation:BThermally Protected:NoneUL:RecognizedUL Stamp:C-UL-US
Technical Specifications
Electrical Type:Capcitor StartRotation:SelectiveShaft Type:NEMA 56Shaft Extension:1.88 in.Frame Length:18.75 in.Mounting:Resilient Base – Extended StudsDrive End Bearing:BallOpp Drive End Bearing:BallFrame Material:Rolled SteelReplacement Capacitor:480 uFCapacitor SKU #:BH02248Keystock:IncludedKeystock Length:1 5/16 in.Keystock Width:3/16 in.
Boat Lift Switch Specifications
Maintained
Momentary
Model #:CA0200034I-B96IQ6RModel #:CA0200037I-B96IQ6RRetail SKU #:BH09014Retail SKU #:BH09015Weight:1.25 lbs.Weight:1.25 lbs.Box Color:Light GreyBox Color:Light GreyHousing Length:4.5 in.Housing Length:4.5 in.Housing Width:3.5 in.Housing Width:3.5 in.Housing Height:4.5 in.Housing Height:4.5 in.Handle Color:RedHandle Color:RedHandle Length:3.0 in.Handle Length:3.0 in.Handle Width:1.1875 in.Handle Width:1.1875 in.Handle Height:1.3125 in.Handle Height:1.3125 in.Country of Origin:ItalyCountry of Origin:Italy
Technical Specifications
Maintained
Momentary
Amps:20Amps:20VAC600VAC600Torque:TightTorque:TightCertification:EN 60947-3Certification:EN 60947-3Certification:CECertification:CECertification:C-UL-US ListedCertification:C-UL-US Listed
GFCI Wire Harness Specifications
110v
220v
Manufacturer:Southwire CompanyManufacturer:Southwire CompanyPlug Type:3-US 110 V StandardPlug Type:US 240 Volt NEMA 6-15VAC:125VAC:240Hz:60Hz:50/60Amps:15Amps:15Watts:1875Watts:3600Type:Rainproof Class AType:Rainproof Class AGFCI Type:In-lineGFCI Type:In-lineCable Type:14/5 SJTWCable Type:14/5 SJTWGFCI to Plug:4.5 in.GFCI to Plug:4.5 in.Cord Diameter Range:0.28 – 0.65 in.Cord Diameter Range:0.28 – 0.65 in.Country of Origin:HondurasCountry of Origin:HondurasUL:ListedUL:ListedCSA:CertifiedCSA:CertifiedReset Button:YesReset Button:YesReset Type:AutomaticReset Type:AutomaticBH-USA SKU:12211BH-USA SKU:12228Catalog #:303385214Catalog #:25090
